Introduction

TL;DR — Short, practical tips to make Azure Logic Apps more robust and production-ready. This post covers schema validation, JSON parsing shortcuts, authentication setup, and trigger concurrency control.

In this article I focus on Azure Logic Apps tips that I used in real projects and want to share with integration engineers accross the community.

Azure Logic Apps

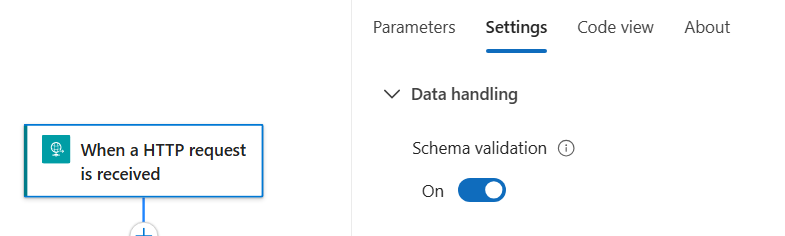

1. Schema validation

• For HTTP triggers, enable schema validation so the workflow triggers only when the incoming payload matches the expected shape. This keeps run history clean and makes failures easier to diagnose.
• Schema validation is only available on HTTP triggers (UI setting). Use it when you control the caller or can define a stable contract.

• For Parse JSON: you can define field length, required fields, and enums. Example JSON Schema to enforce a max length:

{
  "type": "object",
  "properties": {
    "invNo": {
      "type": "string",
      "maxLength": 20
    }
  },
  "required": ["invNo"]
}

Refer to the official JSON Schema docs here.

2. JSON parsing

Instead of always using the Parse JSON action (which requires a strict schema and can break on changes), use expressions to access nested fields safely.

Example payload:

{
  "order": {
    "order_id": "ORD-0000001221",
    "qty": 1.01,
    "amount": 10024,
    "currency_code": "INR",
    "unit": "pcs"
  }
}

Access a field using an expression:

triggerBody()?['order']?['order_id']

Or in code view string formatting:

@"{triggerBody()?['order']?['order_id']}

Use this approach for resilience when producers may change the payload shape.

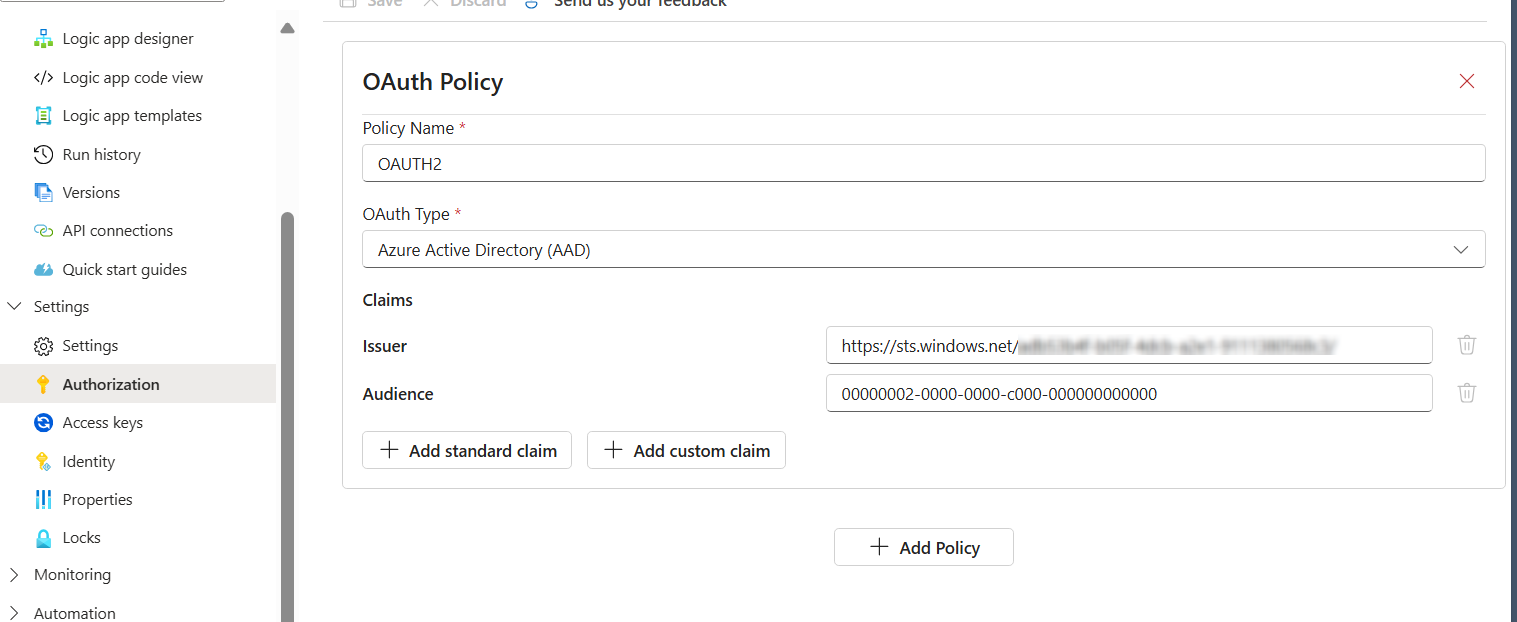

3. Authentication (OAuth2)

For OAuth2, set up the authorization on the action and create a policy where needed.

Common values that work for MS Entra / AAD setups:

iss: https://sts.windows.net/<tenant-id>
aud: 00000002-0000-0000-c000-000000000000

For token generation, set audience appropriately:

aud: https://sts.windows.net/<tenant-id>

To decode tokens for troubleshooting use jwt.ms.

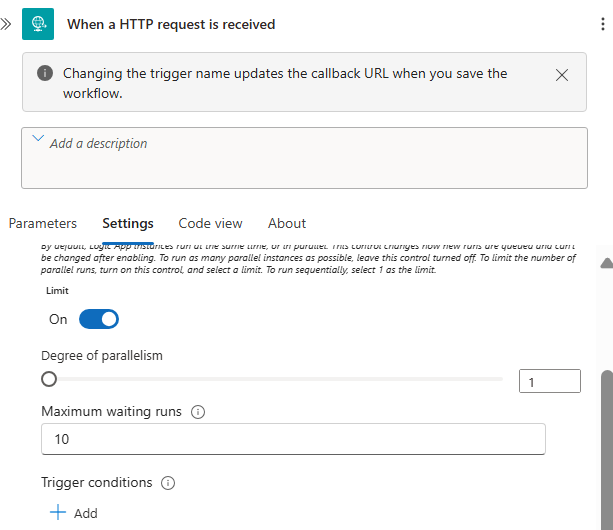

4. Trigger concurrency control

If your downstream systems cannot handle parallel requests (e.g. ERP tables with locks), control concurrency on the trigger.

• Set concurrency to 1 when you need strict ordering or to avoid locking conflicts.
• Adjust the maximum queued requests and wait behavior to avoid runaway timeouts.

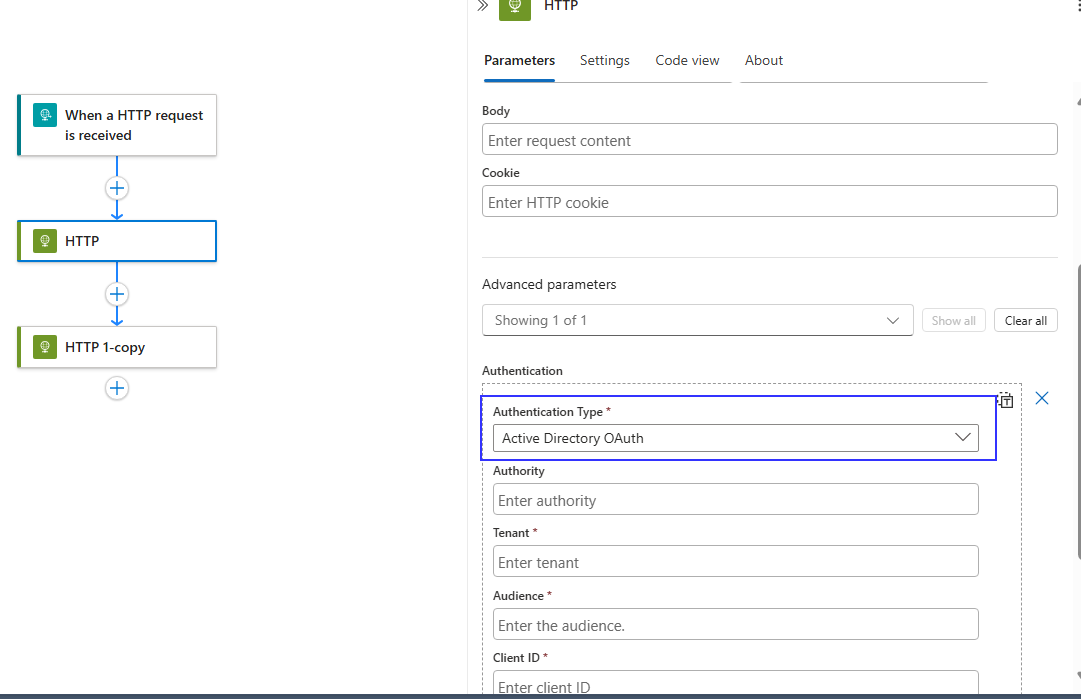

5. Authentication on HTTP actions

When calling OAuth2-protected endpoints, you can configure token generation inside the HTTP action so every request gets a fresh token without manual token management.

Tip: Match the audience claim to the resource for correct token validation.

Key takeaways

• Use schema validation for contractual controls.
• Prefer expression-based access for flexible parsing.
• Harden auth and prefer built-in token management where possible.
• Use trigger concurrency to protect downstream systems.

If you found this useful, please share it to help other integration engineers.

Thanks for reading, Keep learning keep growing.
